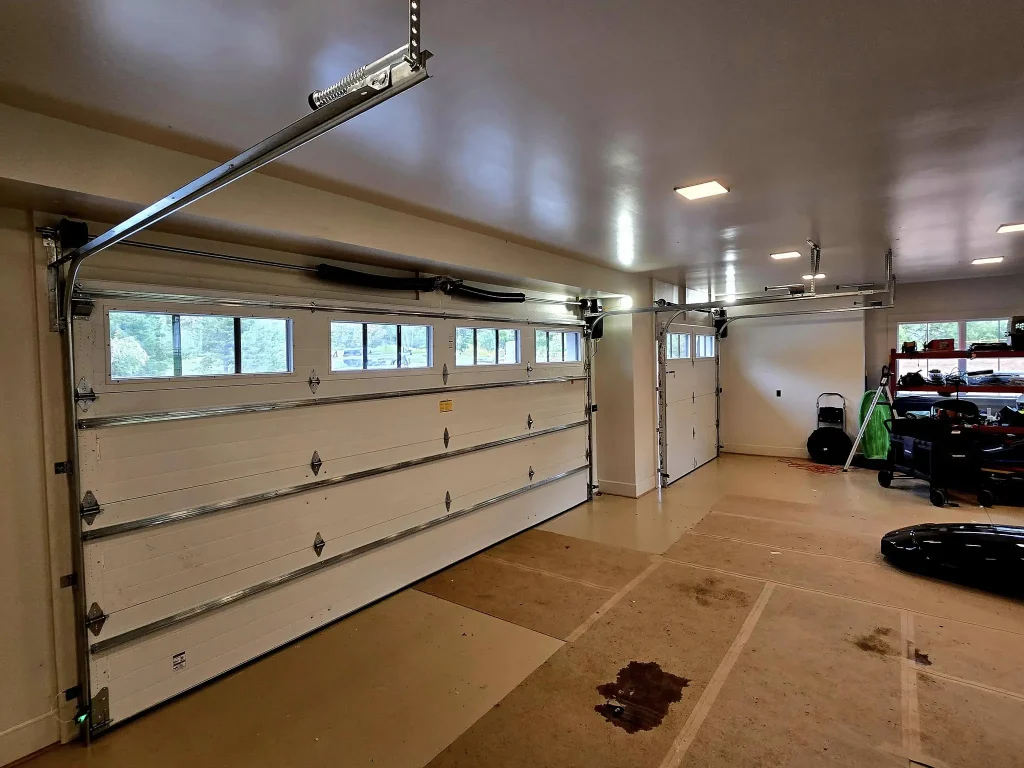

Standard Garage Door Panel Height: How Tall Is It?

Standard garage door panel height determines whether a door fits the opening correctly, moves along the garage door track without issues, and accommodates the vehicles parked inside. Getting this measurement wrong from the start leads to poor fitment, damaged panels, and expensive replacements down the line.

Each garage door panel is a horizontal section that stacks with others to reach the full door height, and the size of those sections varies depending on the door type, home design, and vehicle clearance needed. Knowing the correct measurements before buying or replacing a door saves time, money, and unnecessary frustration.

Why Is Knowing Your Garage Door Panel Height Important?

The garage door panel height is one of the most overlooked measurements in a garage door system, yet it directly impacts vehicle clearance, panel replacement accuracy, and the long-term performance of every moving component.

Here is why knowing your garage door panel height matters:

• The wrong panel height blocks taller vehicles from clearing the opening.
• A mismatched replacement panel throws off door balance and alignment.
• Incorrect measurements during renovation can lead to costly structural problems.
• An ill-fitting door puts constant strain on the springs, cables, and track.
• Non-compliant door height results in local building code violations in Niles, IL.

To understand how panel height differences affect your options, read our guide on Do Garage Door Panel Heights Vary by Door Type?, which covers the key distinctions homeowners need to know before any purchase or replacement.

Standard Garage Door Panel Sizes: What You Need to Know

What Is the Size of a Garage Door Panel?

The standard garage door panel height determines whether a replacement fits correctly and whether the full door operates as it should.

Here is what defines standard garage door panel height:

• Panels are horizontal sections that stack together to form the full door height.
• Standard panels measure 18, 21, or 24 inches tall.
• Total door height depends on how many panels are stacked together.
• Most residential doors stand at either 7 feet or 8 feet tall.
• Panel height is measured from the bottom edge to the top edge of each section.

Garage door panel sizes vary across manufacturers, so measuring each section individually before ordering is always recommended.

Standard Garage Door Heights

Standard garage door heights are designed to fit a range of vehicles and property types, from everyday sedans to oversized equipment.

Here is a breakdown of standard garage door heights:

• 7 Feet (84 inches) fits sedans and small trucks, most common in older homes.
• 8 Feet (96 inches) accommodates full-size SUVs and pickup trucks in modern homes.
• Specialty heights increase in 3-inch increments for non-standard openings.
• RV and oversized doors range from 10 to 16 feet for large vehicles and equipment.

Matching the door height to the vehicles inside determines whether the door works as intended from day one.

Common Panel Section Heights

Panel section height determines how many sections stack together to reach the full door height.

Here are the most common panel section heights:

• 18-inch panels are used in specialty and commercial setups that require more sections.
• 21-inch panels are the most widely used in standard residential garage doors.
• 24-inch panels are common in modern 8-foot doors with a wider, cleaner look.
• Section height affects how the door stacks, travels along the track, and how much headroom is needed.

Matching the section height exactly during any garage door replacement keeps the door balanced and moving smoothly on the track.

Common Door Layout Examples

Understanding how panels stack into complete configurations makes it easier to identify what is installed and what is needed for a replacement or upgrade.

Here are the most common door layout examples:

• 7-foot doors use four sections of 21-inch panels.
• 8-foot doors use four 24-inch panels or a mix of 21-inch and 18-inch panels.
• 9-foot doors use six 18-inch panels, common in homes with double garage doors.
• Layout configurations vary by brand, so confirming the setup before ordering avoids sizing errors.

Confirming the exact layout before placing any order ensures the replacement panels fit correctly and work with the existing hardware.

Common Door Types and Their Panel Height

Different garage door types have varying panel configurations, and knowing which type you have determines which height options are available.

Door Type	Common Panel Height	Typical Door Height
Sectional	18, 21, or 24 inches	7 to 8 feet
Roll-Up	No standard panels	8 to 14 feet
Carriage House	18, 21, or 24 inches	7 to 8 feet
Custom Style	Varies by design	7 to 16 feet
RV/Oversized	Varies by design	10 to 16 feet

Identifying the door type early makes garage door repair and panel sourcing significantly easier and more accurate.

What Factors Affect Garage Door Panel Height?

Several key factors determine what garage door panel height works best for a specific home or property.

Here are the factors that affect garage door panel height:

• Ceiling height limits how tall the door and panels can be within the available headroom.
• Vehicle size determines the minimum clearance height needed for entry and exit.
• Local building codes in Niles, IL, set requirements for garage door dimensions and installations, and homeowners can submit permit applications and track inspection status through the Citizen Self-Service (CSS) portal.
• Door type influences what panel heights are available and how sections stack together.
• Rough opening size sets the boundaries for what panel height configurations will fit.

Accounting for all these factors before purchasing or replacing a door ensures the panels fit the space and meet all local requirements.

How to Measure Your Garage Door Panel Height

Accurate measurements are the foundation of any successful garage door panel replacement or new installation.

Here is how to measure your garage door panel height correctly:

• Measure each panel from the bottom edge to the top edge using a tape measure.
• Record the rough opening height from the floor to the top at both corners.
• Count the total number of panels to confirm the full door configuration.
• Include the opening width alongside the height to complete the measurement set.
• Measure twice before placing any order to confirm accuracy.

Getting every measurement right the first time ensures the replacement panels fit and work correctly with the existing hardware.

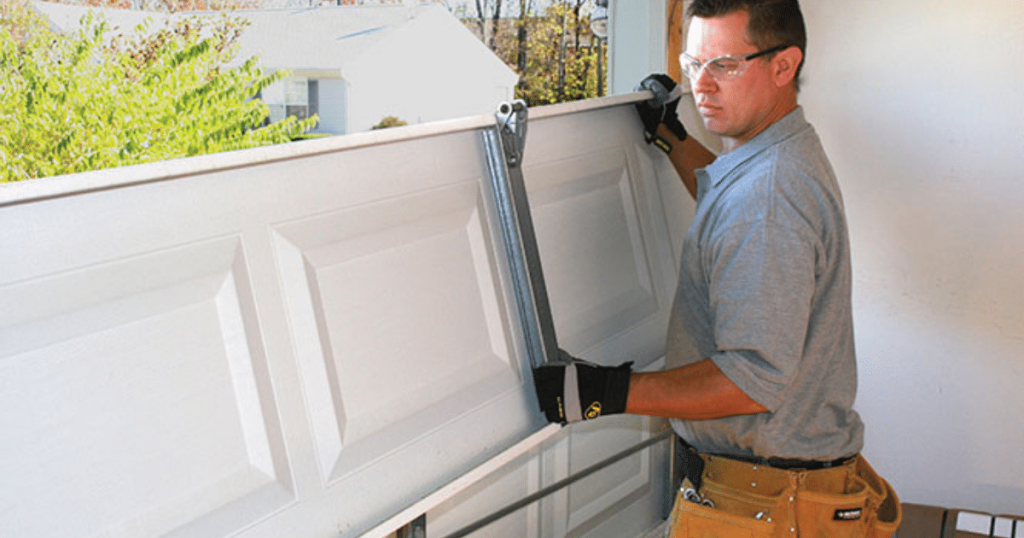

Signs Your Garage Door Panel Height Is Wrong and When to Replace

Warning Signs to Watch Out For

Incorrect garage door panel height shows up in specific ways that affect how the door looks, sounds, and operates daily.

Watch for these signs that your garage door panel height may be off:

• Vehicles scrape the top of the opening when pulling in or out.
• Visible gaps appear between panels when the door is fully closed.
• Grinding or scraping noises occur when the door moves along the track.
• Panels look visibly bent, warped, or out of alignment.
• The door stops mid-cycle without completing a full open or close.

Addressing these signs early prevents unnecessary stress on the springs, garage door cables, and other critical components.

When to Repair vs. Replace Your Panels

Not every damaged panel requires a full door swap, and knowing the difference helps homeowners make a more informed decision.

Factor	Repair	Replace
Number of damaged panels	Single panel	Multiple panels
Door age	Under 15 years	15 years or older
Overall door condition	Good condition	Widespread wear
Panel alignment	Minor misalignment	Structural misalignment
Panel height match	Exact match available	No matching panels available

To learn how panel height plays a role in the replacement process, read our guide on How Does Garage Door Panel Height Affect Replacement?, which covers the key factors professionals evaluate before recommending a full door swap.

Can You Customize Your Garage Door Panel Height?

Custom-sized garage door panels are available for homes and properties where standard dimensions simply do not fit the opening.

Factor	Standard Panels	Custom Panels
Sizing	Fixed at 18, 21, or 24 inches	Built to exact opening measurements
Availability	Widely available	Made to order
Lead Time	Immediate or short wait	Several weeks
Cost	More affordable	Higher due to special manufacturing
Best For	Most residential homes	Non-standard or older openings

To find out what the customization process entails, read our guide on Can You Customize Your Garage Door Panel Height?, which walks through everything homeowners need to know before placing a custom order.

Know Your Garage Door Panel Height Before You Buy or Replace

Every decision about a garage door starts with one measurement, and knowing the standard garage door panel height ensures the door fits the opening, clears vehicles inside, and works correctly with all components. Getting this number right prevents mismatched panels, failed inspections, and premature wear.

MF Solutions has been helping Niles, IL, homeowners determine the correct garage door panel height for every installation, replacement, and custom order. Contact us or give us a call today, and let our team handle every measurement, sourcing, and installation detail so your garage door fits and functions exactly the way it should.
